Biomorph Level 3 Plus vs Watson Mercury Pro is a useful comparison for teams planning a dispatch, security or operations center. Both deserve a look when the brief calls for a large, adjustable operator position. The differences become clearer when you specify how the monitors move, where the computers live and which services the project needs.
This guide compares similarly sized configurations, explains the equipment budget and identifies the details to confirm before ordering. It focuses on Mercury Pro, one specific Watson console, so you can evaluate the actual product on your shortlist.
Research reviewed October 13, 2026 · Proposed configurations; final project specification required
Jump to the detailed comparison ↓1. Start with a comparable operator position

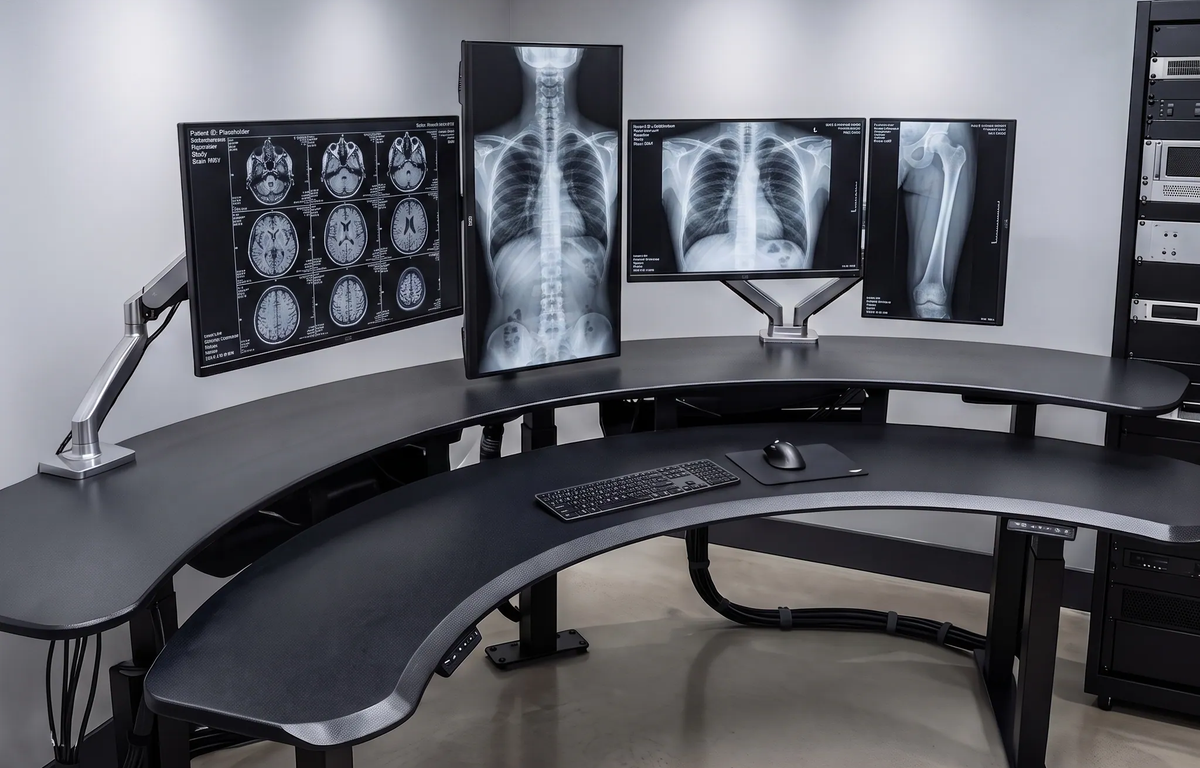

For this comparison, we selected the 95-inch Biomorph Level 3 Plus and a 96-inch Watson Mercury Pro. Their similar work-surface widths make them a useful starting point for a large, multi-screen position. Watson documents 96-inch Mercury Pro installations, and Biomorph offers its 95-inch configuration within the Level 3 Plus range.[17][1]
The matching width does not make the complete layouts identical. Storage, screens and clearances can extend beyond the operator surface. Review the dimensioned plan before deciding how many positions a room can accommodate.
Which Watson console are we comparing?
Watson’s Mercury family includes Base, Standard, Pro, Corner and Command configurations. Pro is relevant here because it combines sit-to-stand adjustment, powered monitor positioning and integrated operator controls. The Standard is also worth specifying when a buyer wants fewer integrated features; a Pro quote should not stand in for every Mercury model.
Watson also offers Apollo, a separate platform with touchscreen controls and RFID comfort profiles. Those features belong to Apollo and are outside this Mercury Pro comparison.
Define the job before the accessory list
Give both suppliers the same brief. It should identify:
- The number, dimensions, weight and mounting pattern of every display.
- Computers and other equipment that must remain at each position.
- Keyboard, radio, telephone and paperwork space.
- Connections operators must reach during a shift.
- Storage, privacy, room access and service requirements.
For example, a security operator with two local computers and a shared video wall may need a different configuration from a dispatcher handling several local systems. Ordering the same accessory package for both can leave one position short of useful capacity and another carrying equipment it will rarely use.
Ask each supplier to mark what is included, optional or supplied by your IT team. This makes later discussions about price and installation much easier to follow.
Key takeaway: Match the operator’s requirements and the full room footprint. A similar width establishes a useful comparison, while the equipment list determines whether the proposed position fits the job.
2. Compare the functions that matter during a shift
The Biomorph column describes the proposed equipment package in this article. The Watson column describes published Mercury Pro capabilities and configurable options; a supplier quote must confirm the exact inclusions.
| Feature | BiomorphLevel 3 Plus 95″ | WatsonMercury Pro 96″ |
|---|---|---|
| Platform & adjustment | ||
| Operator position | 95 × 39″ desk; five-leg version[1] | 96″ work-surface configuration[17] |
| Primary architecture | Two independently powered surfaces | Adjustable operator surface and powered monitor array[11] |
| Work-surface height | 22.1–48.6″[9] | Published ranges differ; confirm specified version¹ |
| Viewing distance | Individual articulated monitor arms | Sliding work surface; adjustable monitor arms[12] |
| Monitor support | Four 1-over-1 dual mounts in this proposed build; eight mounting positions[3] | Array and mounts selected for the project. Brochure describes up to ten 24″ displays²[13] |
| Lift components | LINAK identified by name[1] | Steel lifting columns; OEM not named in reviewed Pro material[12] |
| Equipment & operator environment | ||
| Computer storage | Two open leg-mounted holders in this build[4] | Configurable hubs, bridges and technology cabinets[14] |
| Equipment cooling | No actively cooled computer enclosure in this build | Actively cooled cabinet options[14] |
| Power & cables | CableCab, cable spine and 10-outlet power strip[5] | Integrated power routing and cable channels[14] |
| Operator connections | USB charging; additional data connections project-specific[6] | Up to 20 configurable front-dash data ports[12] |
| Lighting & climate | One Element Vision task light; no integrated heating/cooling package[7] | Task/ambient lighting, fans and heating with integrated controls; specify options[11] |
| Purchase, installation & support | ||
| Equipment price | $12,337Itemized proposal below; hardware only | Project quote requiredMatched current total not verified[16] |
| Installation & freight | Confirm service scope and current promotion in writing | Confirm both in the project quote |
| Project planning | Available[9] | Available[19] |
| Published warranty | 10-year electrical/mechanical terms | Lifetime on Watson-made parts plus 10 years on electronics/bought-in parts; certified-service conditions³[15] |
1 — Height ranges: Watson’s current Mercury collection introduction lists 22–48″, its Pro feature description lists 24.6–50.8″, and its legacy Pro brochure lists 24–50″. Confirm the specified model’s minimum and maximum work-surface heights. These sources do not establish one unambiguous current Pro range.
2 — Monitor fit: Published capacity is not a promise that every screen arrangement will fit. Verify actual dimensions, weights, mounting hardware, sightlines and the loaded adjustment range for both systems.
3 — Warranty: The summaries above are subject to full terms.
3. Test the adjustments with your actual screens
The useful ergonomic question is what an operator can change without disrupting the rest of the setup. A demonstration with the intended displays and input devices can reveal much more than a minimum-height number.
On Level 3 Plus, the keyboard/input surface and rear equipment surface adjust independently. The monitor mounts then provide individual screen positioning. Mercury Pro combines an adjustable operator surface with a powered array and articulated screen supports. Its sliding work surface also changes the operator’s viewing distance.[1]
These approaches should be tested against the same tasks. Ask a shorter and a taller member of the team to use the proposed setup while seated and standing. Include the keyboard, mouse, telephone and any controls that must stay close to hand.
- Check the lower screens: Can users read them comfortably without giving up usable input space?
- Check the upper screens: Can essential information stay visible without sustained upward viewing?
- Check reach: Can an operator use a touch display or radio control from a normal working position?
- Check movement: Do screens, arms and cables remain clear throughout the required adjustment range?
- Check the handover: Can the next operator establish a comfortable setup while keeping the position organized?
The proposed Biomorph package uses four Humanscale MFlex M2 1-over-1 dual mounts. That specifies stacked pairs and provides eight mounting positions. The final layout still depends on the actual displays, mounting locations and clearance around each arm.[3]
A practical starting example is four columns of two standard displays, with the most frequently used information on the lower row. Have the supplier draw and validate that arrangement. Large curved monitors or heavier displays may call for different mounts and a revised price.
Also check whether all eight screens are necessary. A well-planned six-screen position can serve a particular workflow better than an eight-screen layout that puts frequently used information outside comfortable viewing. The task should determine the arrangement.
Key takeaway: Specify the screen layout first, then verify how it moves. Monitor count, arm count and a comfortable working arrangement are three separate checks.
4. Price the equipment you will actually install
Biomorph’s published item prices make it possible to build a visible equipment budget before requesting a project proposal. The following package includes the desk, stacked monitor support, two computer holders, cable management, power, charging and a task light. It is a proposed configuration for fit verification, not a pre-engineered room design.
| Component | Qty. | Each | Total |
|---|---|---|---|
| Level 3 Plus 95 × 39″ | 1 | $6,300 | $6,300 |
| MFlex M2 dual mount, 1-over-1 | 4 | $1,079 | $4,316 |
| Leg-mounted CPU holder | 2 | $250 | $500 |
| CableCab + cable spine + 10-outlet power strip | 1 | $675 | $675 |
| Desk2Device USB charger | 1 | $120 | $120 |
| Humanscale Element Vision task light | 1 | $426 | $426 |
| Equipment subtotal | $12,337 | ||
The $12,337 subtotal covers the listed hardware only. It excludes displays, computers, seating, tax, freight, installation charges and site electrical/data work. Confirm current availability and any applicable promotions in the written project quote.
Biomorph’s product page advertises a White Glove installation offer. The earlier Falcon article used an $850 installation allowance. Confirm which terms apply to this project rather than automatically carrying that older charge into a new installed total.[1][10]
What does the comparable Watson Mercury Pro cost?
Watson provides a configuration-based quote path. We did not verify a current price for a 96-inch Mercury Pro equipped to this same brief. A publicly available 2021 contract schedule is historical and cannot establish today’s delivered project price.
Request a Watson quote covering the same displays, computer count and installation scope, with optional climate controls and storage identified separately. Both proposals should make clear who supplies cables, connects the technology and tests the completed position.
Equipment storage is a meaningful part of that comparison. This Biomorph package uses open CPU holders. Watson offers cabinet and bridge configurations, including actively cooled storage. If enclosed equipment, controlled access or rack space is required, add it to the brief before comparing totals.[4]
For a multi-position rollout, compare the total delivered project cost as well as the per-position hardware. Include shared components, installation scheduling and any work needed to keep the room operating during the changeover.
Compare the same scope: A published equipment subtotal is a useful starting point. A savings claim requires current, matched proposals with the same installation and project assumptions.
5. Choose the platform and support that fits the room
A useful shortlist considers daily operation and service together. The best-looking configuration can still create avoidable problems if the team cannot access its equipment, replace a component or coordinate support when something stops working.
Biomorph offers space planning and specification assistance. Watson also supports room planning and installation. Ask both teams to show how their proposed position fits the complete center, including supervisor areas, shared displays and the access needed by IT.[9]
Compare how equipment will be serviced
Walk through a realistic maintenance task: replacing a computer, tracing a cable or changing a monitor. Establish which panels must open, where the technician stands and whether the operator needs to leave the position. Record those requirements in the room plan.
Watson describes Mercury as modular and reconfigurable, too. The useful distinction is how each system organizes its components and technology. Avoid assuming that an integrated console cannot change, or that separate accessories automatically make every repair easier.
Confirm the warranty for the intended use
Watson’s Mercury warranty specifies lifetime coverage for Watson-made components and ten years for electronics and bought-in parts, with installation and maintenance conditions. Biomorph publishes ten-year electrical/mechanical coverage.
What to do next
- Shortlist Level 3 Plus when independent input/equipment positioning and a visible component budget match your needs.
- Shortlist Mercury Pro when an integrated console’s operator controls and equipment infrastructure are central to the brief.
- Validate both layouts with actual monitors, computers, users and service clearances.
- Request matched proposals with delivery, installation, continuous-use terms and project responsibilities stated.
Then compare the proposed working position as a whole. The decision should be easy to explain in terms of operator fit, equipment access, project scope and cost.
Plan your operator position with Biomorph
Level 3 Plus offers independent surface adjustment and a configurable equipment package. Mercury Pro integrates more console functions around the operator. Start with your room and technology requirements, validate the layout, and compare complete proposals.
Send Biomorph your floor plan, number of positions, display specifications and computer requirements. Our team can help specify the workstations, accessories and installation scope for your project.
Get a workstation configuration and quoteSources and comparison method
Research reviewed October 13, 2026. Manufacturer materials establish the documented features; recommendations and the proposed Biomorph configuration are our analysis. Older brochures are identified where specifications conflict. Prices and offers can change. A quoted configuration takes precedence over a general product description. Pricing for Watson from 2021 price schedule, historical only.
