Radiology Reading Room RFP Checklist for Workstations – Biomorph Inc

Building out a hospital radiology reading room is not the same as buying standard office furniture.

A reading room workstation has to support diagnostic monitors, long shifts, different clinician body types, low-light environments, cable-heavy equipment, and often multiple users across the same space.

This radiology reading room RFP checklist gives hospital procurement teams, imaging leaders, facilities teams, and IT stakeholders five practical workstation requirements to include before evaluating bids.

Key takeaway: A strong RFP should define the working environment, not just ask vendors for “height-adjustable desks.” The details decide whether the room supports the radiologist or creates daily friction.

What Should a Radiology Reading Room RFP Include?

A radiology reading room RFP should include ergonomic adjustment range, focal depth control, lighting and glare planning, safety features, and integration requirements for monitors, cabling, IT equipment, purchasing, and service.

Those five categories help vendors quote the right workstation and help hospital teams compare bids more fairly. Without them, two proposals may look similar on price but support very different working conditions.

At minimum, the RFP should define:

Who will use the room
How many workstations are needed
How many diagnostic monitors each station must support
Whether stations are assigned or shared
Whether users sit, stand, or alternate throughout the shift
What IT hardware, accessories, dictation tools, and lighting need to be integrated

A good RFP does not need to over-design every workstation in advance. It should give vendors enough information to recommend a setup that fits the room, the clinicians, and the purchasing process.

This matters because reading rooms are high-focus environments. Small details like monitor height, focal distance, glare, and keyboard position can become daily problems when they are repeated across long reading sessions.

Bottom line: write the RFP around the work being done, not just the furniture being purchased.

1. Why Downward Travel Range Matters for Radiology Workstations

Downward travel range matters because diagnostic monitors can sit high on the workstation, especially when larger displays or multi-monitor arrays are used. If the desk does not drop low enough, shorter clinicians may be forced into neck extension or shoulder elevation during long reading sessions.

For radiology reading rooms, include a specific low-height requirement in the RFP. Many teams should look for desks that can travel down into roughly the 22"–24" range, depending on the monitor setup, floor conditions, accessories, and user population.

The RFP should ask vendors to provide:

Minimum and maximum height range
Height range with monitor arms and accessories installed
Whether monitor and keyboard surfaces adjust together or independently
Whether the workstation supports seated, standing, and shared-user workflows
Any limitations caused by caster height, cable trays, CPU holders, or accessories

This is especially important when planning for dual 5MP displays, large color diagnostic displays, or multi-monitor PACS setups. The screen size, monitor arm, mounting height, and desk surface height all work together.

Do not evaluate downward range from the desk frame alone. Ask for the actual usable ergonomic range of the configured workstation.

Common mistake: Comparing only maximum standing height. In radiology, the low end of the height range can matter just as much as the high end.

2. Why Focal Depth Adjustability Belongs in the RFP

Focal depth adjustability lets radiologists move diagnostic displays closer or farther away without changing the chair, keyboard position, or full workstation setup.

This matters because diagnostic reading often requires close visual attention. Different studies, display sizes, personal preferences, and visual needs may require different viewing distances throughout the day.

Your RFP should ask how each proposed workstation supports focal depth control. Depending on the vendor and workstation style, that may include:

Monitor rails
Sliding monitor sleds
Motorized focal-depth tracks
Articulating monitor arms
Independently adjustable monitor surfaces
Workstation layouts that preserve viewing distance while adjusting posture

The goal is not to require one specific mechanism. The goal is to make sure the workstation lets users adjust screen distance without disrupting the rest of the reading position.

This is also where room planning matters. Focal depth is affected by desk depth, monitor size, monitor count, wall clearance, keyboard location, dictation tools, and chair movement. A shallow desk may look efficient on a floor plan but limit the user once large displays and accessories are installed.

Bottom line: ask vendors to explain how the workstation supports viewing distance, not just monitor mounting.

3. How Should a Radiology Reading Room RFP Address Lighting and Glare?

A radiology reading room RFP should address ambient lighting, glare control, display reflections, and task or bias lighting before the room is built out.

Reading room lighting is not decoration. It affects comfort, eye fatigue, and the viewing environment around diagnostic displays. The ACR–AAPM–SIIM technical standard says viewing conditions should be optimized to minimize eye fatigue by controlling reading room ambient lighting and reducing display reflections; the current ACR document preview references ambient illuminance of 25 to 75 lux for minimizing reflections on workstation displays.
In the RFP, ask vendors and room planners to address:

Indirect or bias lighting behind displays
Dimmable workstation lighting
Glare from walls, windows, doors, and overhead fixtures
Reflections on diagnostic monitors
Task lighting that does not interfere with screen viewing
Finish colors and surface materials that reduce visual distraction

If the workstation includes integrated lighting, ask whether it is dimmable, where it is mounted, and how it is controlled. If lighting is handled separately by facilities, make sure the workstation plan still supports cable routing, power, and placement for lighting accessories.

Quick win: Do not leave lighting to the end of the project. It is easier to specify dimming, glare control, and cable paths in the RFP than to retrofit the room after clinicians start using it.

4. Why Collision Detection and Anti-Pinch Safety Should Be Required

Collision detection and anti-pinch protection should be included in a radiology workstation RFP because multi-display workstations are heavy, motorized, and often used in tight spaces.

A reading room workstation may include diagnostic monitors, monitor arms, CPUs, cable trays, lighting, dictation tools, keyboards, mice, and personal accessories. When that equipment moves up and down, safety matters.

Ask each vendor to document:

Anti-collision or soft-stop functionality
Pinch-point protections between moving surfaces
Weight limits for the rear and front work surfaces
Lifting capacity with monitors and accessories installed
Cable management for independently moving surfaces
Emergency stop or reset procedures
Service access after installation

This is especially important for dual-surface workstations, where monitor and keyboard surfaces may move separately. The RFP should ask how cables are protected between moving surfaces and how the system prevents cable tension, pinching, or equipment damage.

Also ask whether the vendor has recommendations for DisplayPort, power, USB, network, dictation, and peripheral routing. Cable management is not a cosmetic detail in a PACS environment. It affects reliability, service access, safety, and long-term usability.

Bottom line: if it moves, the RFP should ask how it moves safely.

5. What Procurement and IT Details Should Be Included in the RFP?

A radiology reading room RFP should include procurement and IT requirements so the winning bid can be approved, installed, and supported without avoidable delays.

Many workstation projects involve imaging leadership, radiologists, facilities, IT, purchasing, finance, and sometimes infection control or compliance stakeholders. A clear RFP helps each group compare the same facts.

Include requirements for:

Quote format and line-item pricing
Purchase order or credit card payment options
Warranty terms and service process
Lead time and installation timeline
White-glove delivery or installation options
Monitor arm compatibility and payload limits
CPU holder placement and ventilation
Cable management and power routing
Future expansion for additional displays or accessories
Finish options, size options, and room layout constraints

This is also the right place to ask whether the vendor offers planning support. For example, some projects may need a simple product quote, while others need help matching desk shape, monitor count, room dimensions, cable paths, and installation timing.

The RFP should make purchasing easier, not slower. When vendors can show pricing, configuration options, installation assumptions, and payment paths clearly, the hospital team can compare bids with fewer follow-up loops.

Key takeaway: The best workstation bid is not always the one with the longest spec sheet. It is the one that makes the ergonomic fit, technical fit, safety plan, and buying process clear.

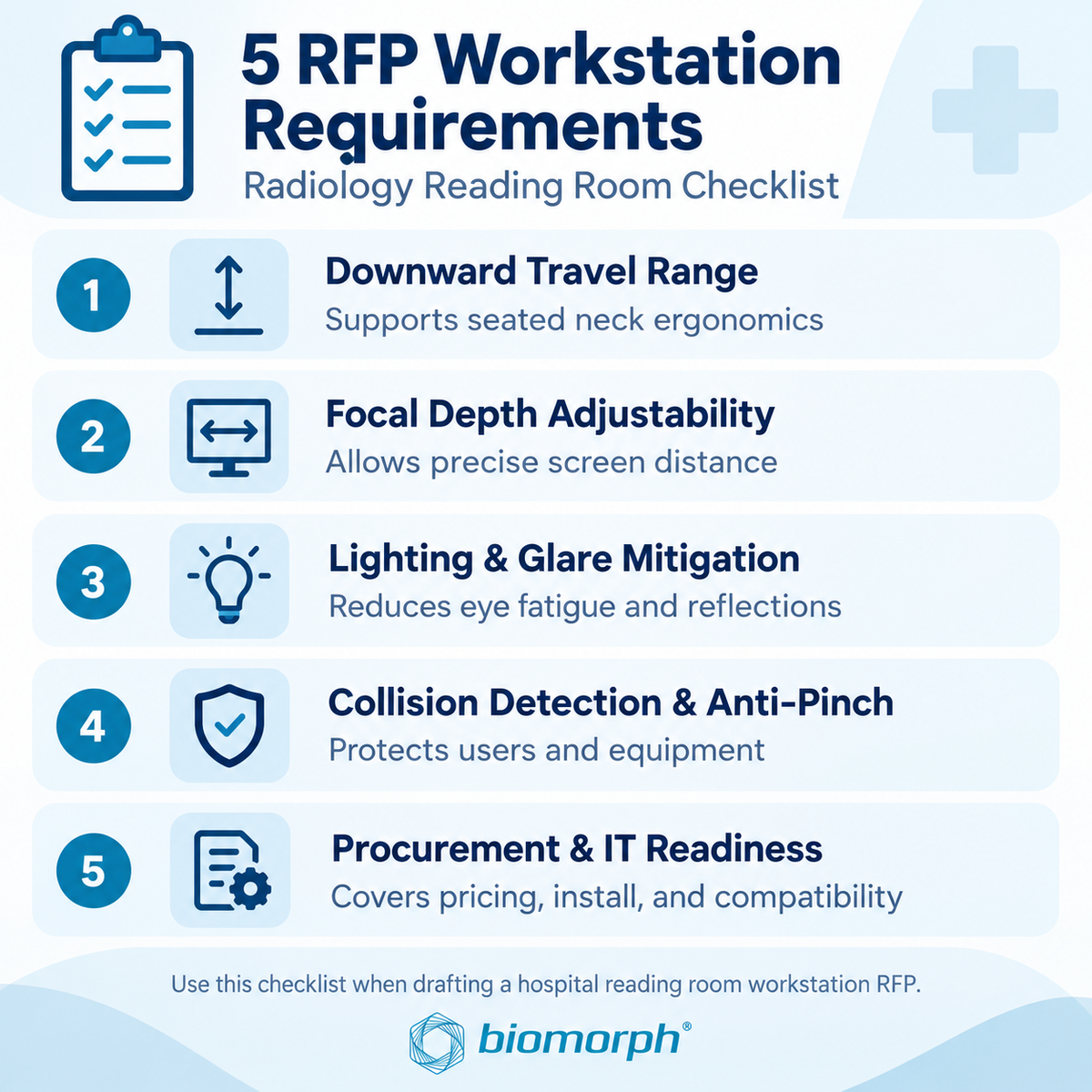

Summary: The 5-Point Radiology Reading Room RFP Checklist

A hospital reading room workstation RFP should make vendor proposals easier to compare and easier to approve.

Use this five-point checklist:

Downward travel range: Require usable low-height specs for seated ergonomics and shorter clinicians.
Focal depth adjustability: Ask how users can adjust screen distance without disrupting keyboard or chair position.
Lighting and glare mitigation: Plan ambient light, reflections, dimming, bias lighting, and surface finishes early.
Collision detection and anti-pinch safety: Require safe movement, cable protection, and configured weight limits.
Procurement and IT readiness: Include pricing format, PO/payment options, installation, warranty, cable paths, and monitor compatibility.

For teams comparing specific workstation manufacturers, use this checklist alongside a product-by-product comparison so you are not only comparing price. You are comparing how well each system supports the reading room.
